SPOTTER PLATFORM
Bristlemouth
Development Kit
Add custom or off-the-shelf devices to your Spotter
Platform to expand your subsurface sensing suite.
Sensor Specifications
Download the Spec SheetProcessor
STM32U575CI ARM Cortex-M33 processor
Firmware
Open source C/C++
Memory
64 Mbit NOR FLASH
External Kit Dimensions
O.D. 76 mm, Length 200 mm
Maximum Power
Up to 10W continuous
Data Rates
10 Mbit/s
Interfaces
RS232 / RS422 / RS485 / SDI-12 / UART / SPI / I2C / GPIO
Output Voltages
3.3V, 5V Selectable: 9V, 12V, 19V
Maximum Operational Depth
100 m
Powered by Bristlemouth
The Development Kit utilizes Bristlemouth, our open standard that delivers plug-and-play hardware interfaces for marine technologies. Increase speed and scale of sensor integration using dual Bristlemouth ports that support daisy-chain configurations.

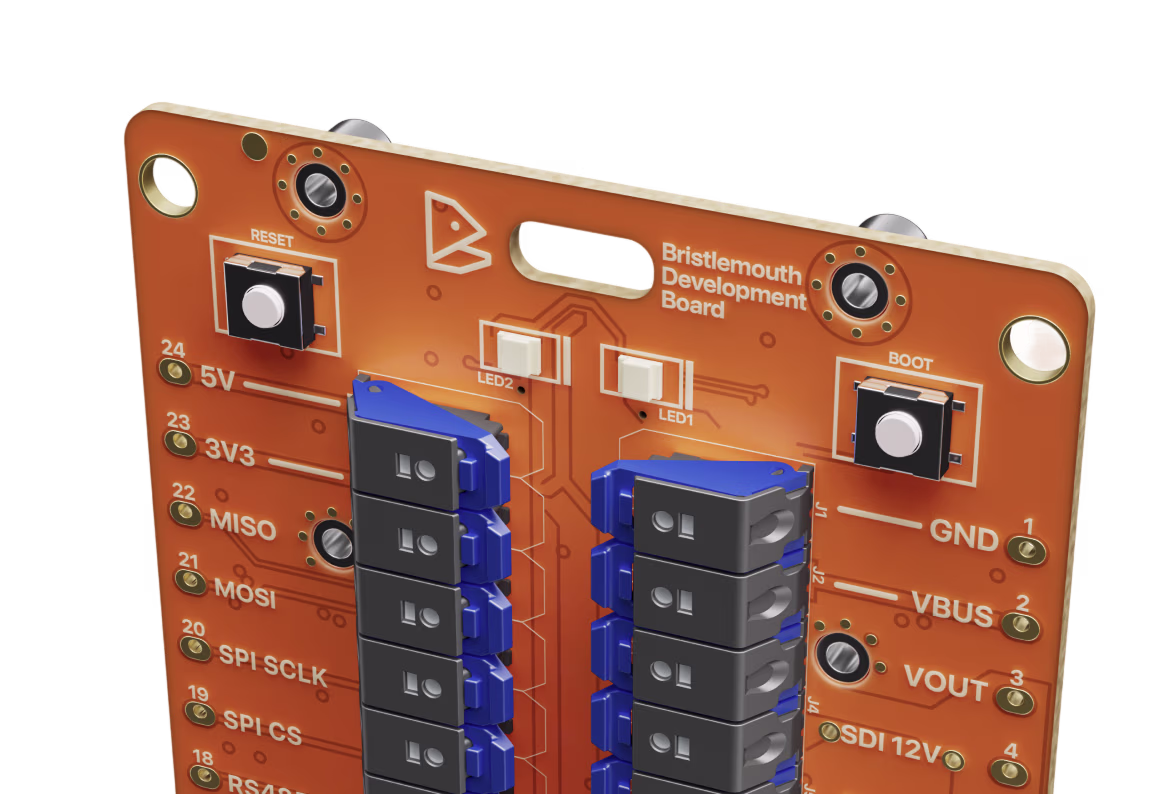

User-Friendly Development Board

Rapidly add existing off-the-shelf sensors or prototype Bristlemouth-powered devices using I/O connection and digital interfaces for embedded integration.
Ocean-Proof Marine Housing

Ensure continuous data collection with a robust two-conductor connector, watertight enclosure, and modifiable endcap for cabling to external devices.
