SPOTTER PLATFORM

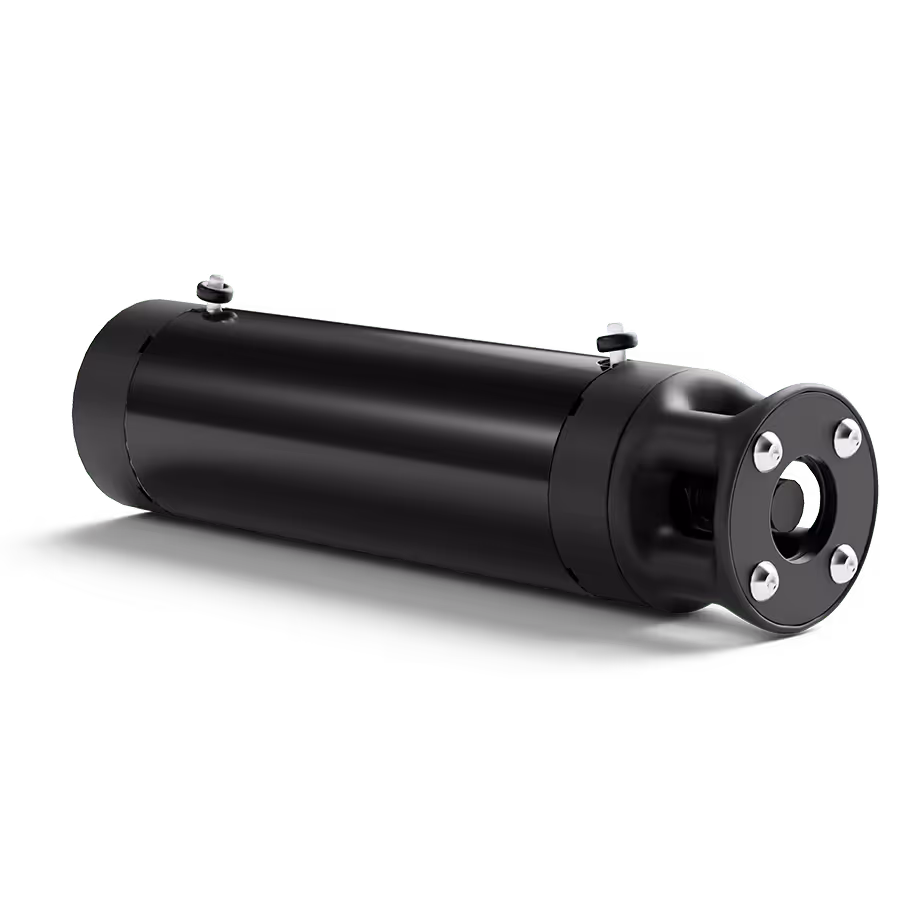

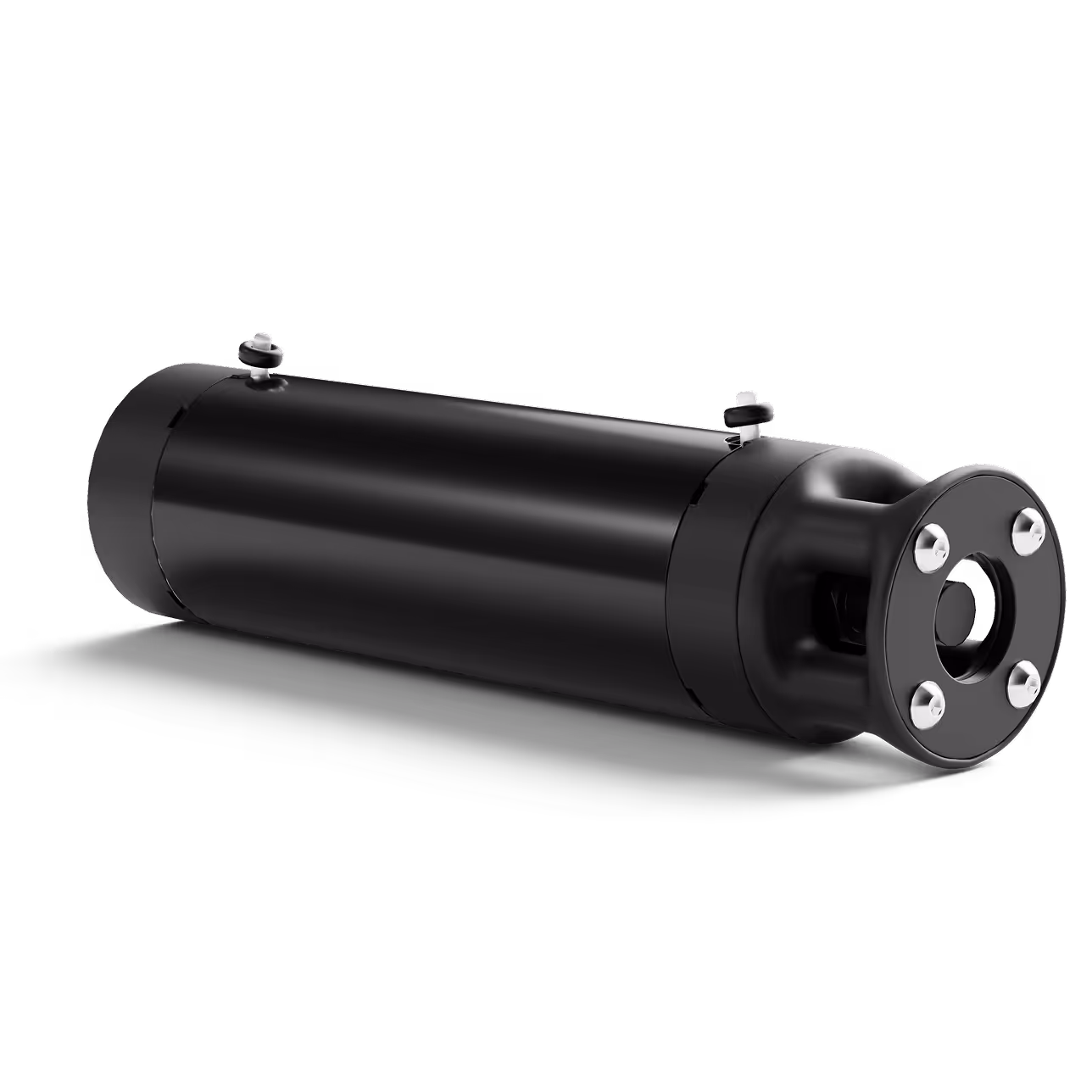

Hydrophone

Add a robust, AI-enabled hydrophone to your Spotter Platform to monitor and identify underwater sound in real time. Process data at the edge using built-in AI models or deploy your own algorithms for custom detection needs.

Explore Configuration

Sensor Specifications

Download the Spec Sheet

Sensor

Applied Ocean Sciences Borealis

Sensor Type

Piezoelectric

Frequency Range

18 Hz – 25 kHz

Sensitivity

-203 dB re 1V/μPa

Self-Noise

< 31 dB re 1 μPa²/Hz

Power Consumption

35 – 75 mW (mode dependent)

Sleep Power

< 5 mW in standby mode

Sampling Rates

15k, 20.8k, 31.25k, 62.5k sps (configurable)

Directional Response

Omnidirectional

Pre-amp Gain

26.4 dB before ADC

Bit Depth

24-bit ADC (dithered to 16-bit logged)

Maximum Depth

50 m

Power Supply

Spotter’s Li-ion battery (solar-rechargeable)

Operating Temperature

-5°C – 35°C

Size (Dia. × Len.)

~51 mm × 254 mm

Weight

0.85 kg (< 2 lb)

Interface Standard

Bristlemouth-native (plug-and-play)

Collection Modes

Continuous
‍Always-on recording with scheduled data offload

Duty Cycling
‍Record intermittently to extend battery/SD usage

Event/Trigger
‍Automatic detection triggers high-resolution logging

Data Outputs

Waveform
‍Full acoustic waveform data for detailed analysis

Spectral
‍Frequency domain data for sound characterization

Event/Trigger
‍Timestamped acoustic events based on thresholds

Sound Pressure Level (SPL)
‍Timestamped acoustic events based on thresholds

Sound Exposure Level (SEL)
‍Cumulative sound energy measurements

Deployment & Best Practices

Configuration Options
‍Ideal for moored coastal deployments with one Spotter or a network.Integrate up to two more devices (e.g. pressure/current) per Smart Mooring (max 3 total).

Depth Placement
‍Place hydrophone ≥ 5 m below surface to avoid noise interference.

Remote Configuration & Controls
Direct control via Spotter Dashboard, binary/ASCII commands, and Sofar remote support.

Explore Configuration

Data Access & Analysis

Spotter Dashboard
View real-time data and insights

API Access
Retrieve data programmatically with our secure API

Onboard Storage
Download data via SD card for offline analysis

Transmission
Satellite and cellular options

Featured in

Spotter Sound

Process acoustic data at the edge using built-in AI models or deploy your own algorithms for custom detection needs.

Learn More →
